Description

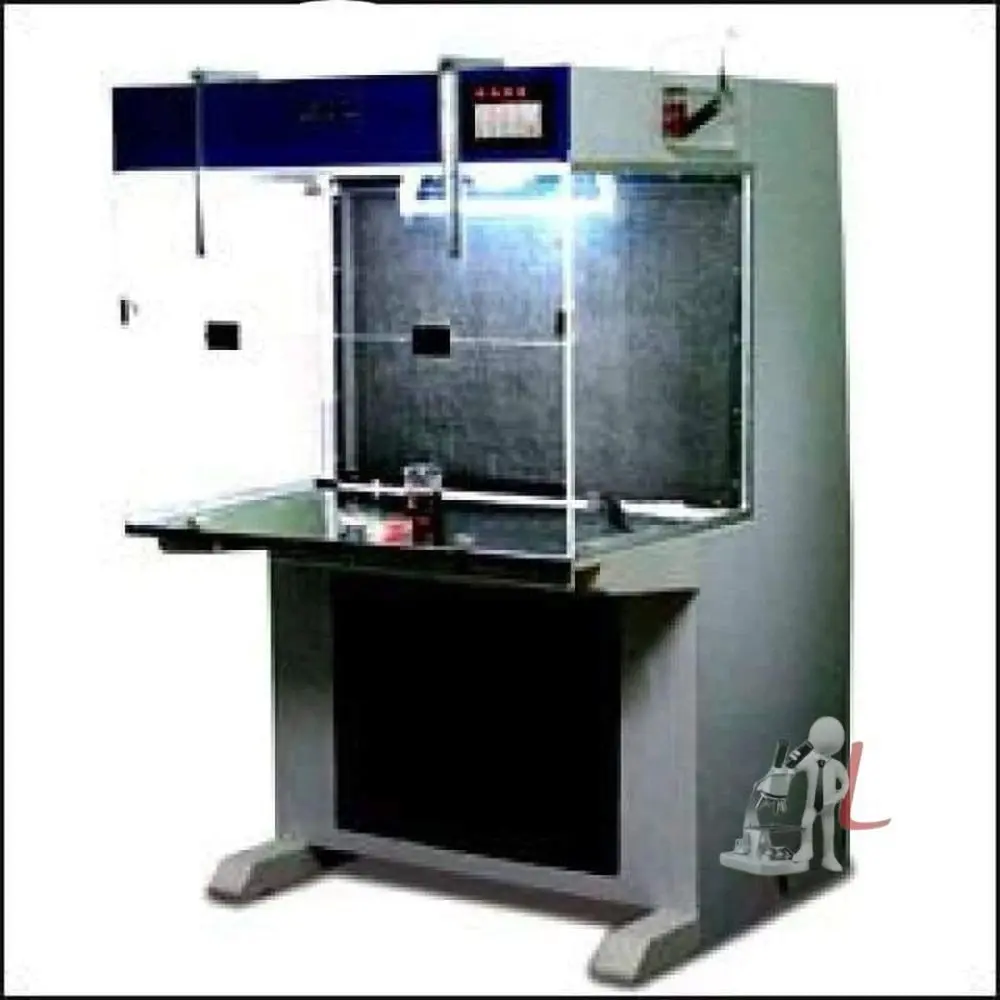

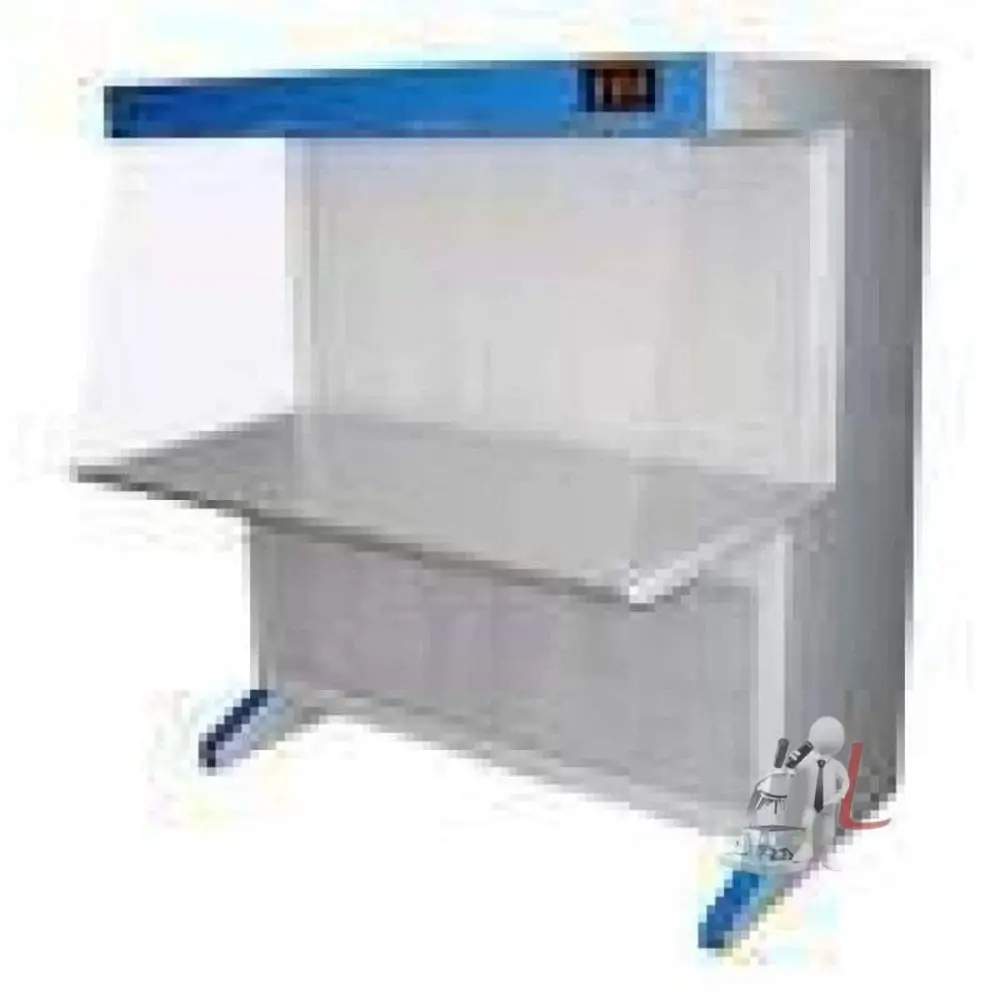

mushroom lab equipment Horizontal Laminar Air Flow

Horizontal Laminar Air Flow is a clean air workstation which provides a particle free ultra-clean working environment for aseptic operations. This is carried out by the 0.5 micron / 0.3 micron pore size HEPA filter providing the sterile air flow in the working area .Vertical laminar air flow works on the principle that the vertical unidirectional flow is within the cabinet and is therefore less susceptible to the contamination in the surrounding area.

Dimension of working area ( W x D x H )	870 x 510 x 600 mm
Dimension of filter ( W x D x H )	865 x 600 x 38 mm
Fluorescent lamp	20 W

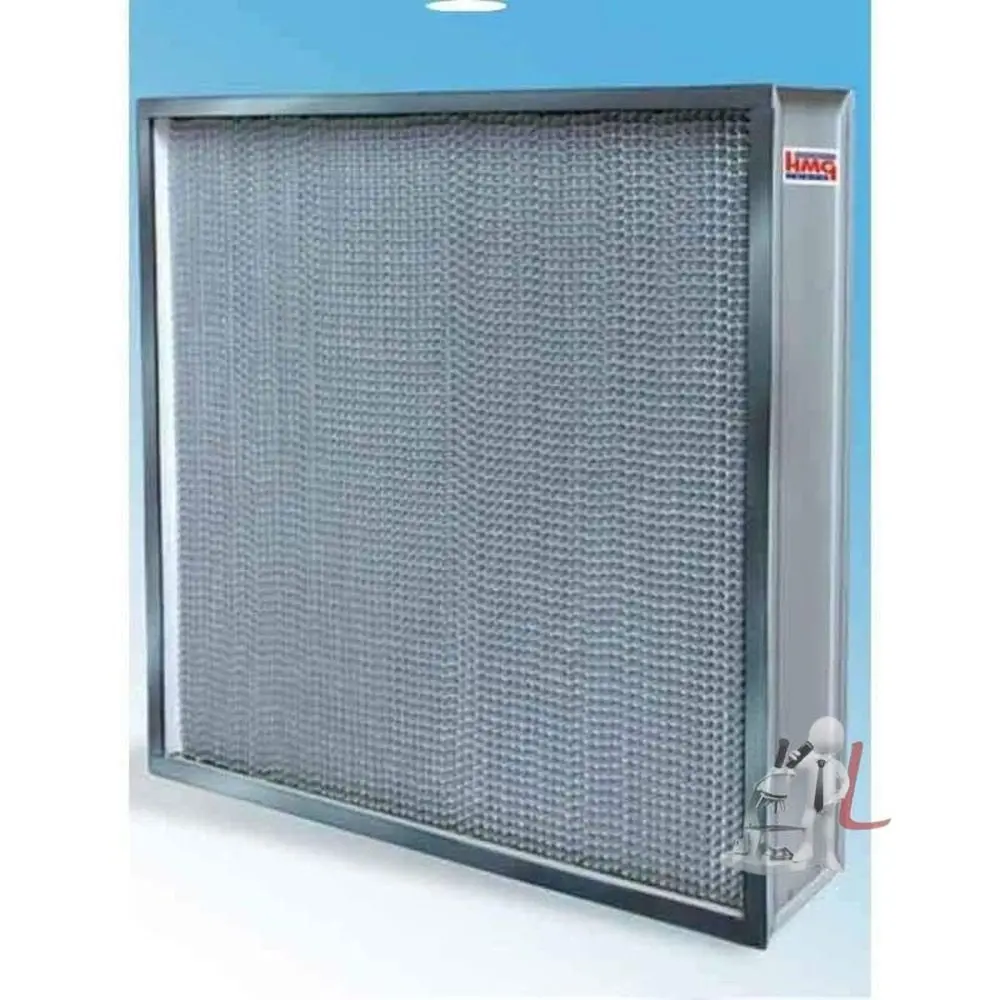

HEPA Filter	0.5 micron / 0.3 micron
Clean grade	Grade 100
No of bacteria	≤ 0.5 per utensil / hr.
Half ventilation peak value	< 0.5 µM
Pre-filter	High efficiency nylon filter
UV lamp	20 W
Noise	≤ 62 dB
Airflow velocity	0.25 m/s – 0.45 m/s
Power supply	AC 220 V / 50 Hz
Maximum Power Consumption	300 W
Overall dimension ( W x D x H )	1025 x 745 x 1815 mm
Weight	150 kg

Both Horizontal and Vertical airflow combined in one cabinet
Stainless steel corrosion proof work surface
Digital display for fan speed , life of HEPA filter , lamp control
Dual speed voltage regulation
Flexibility to easily replace filter and electric component while opening the front cover
Alarm for HEPA filter replacement
Glass window for easy visualization and protection from UV rays
Particle retention by HEPA filter – 0.5 micron / 0.3 micron
Fluorescent lamp – 20 W
Sterilization by UV lights – 20 W
Air flow velocity – 0.25 – 0.45 m/s
Noise level ≤ 62 dB
Efficient insulation and quiet operation
